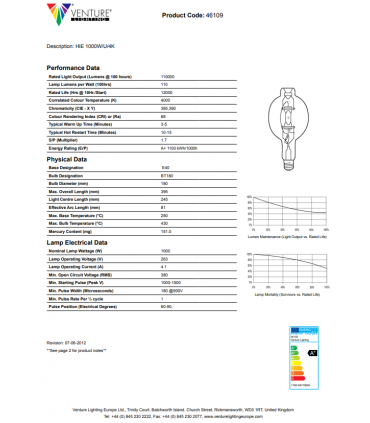

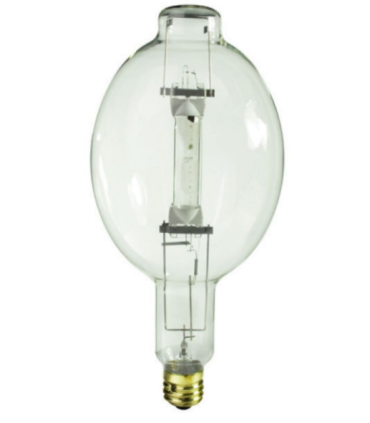

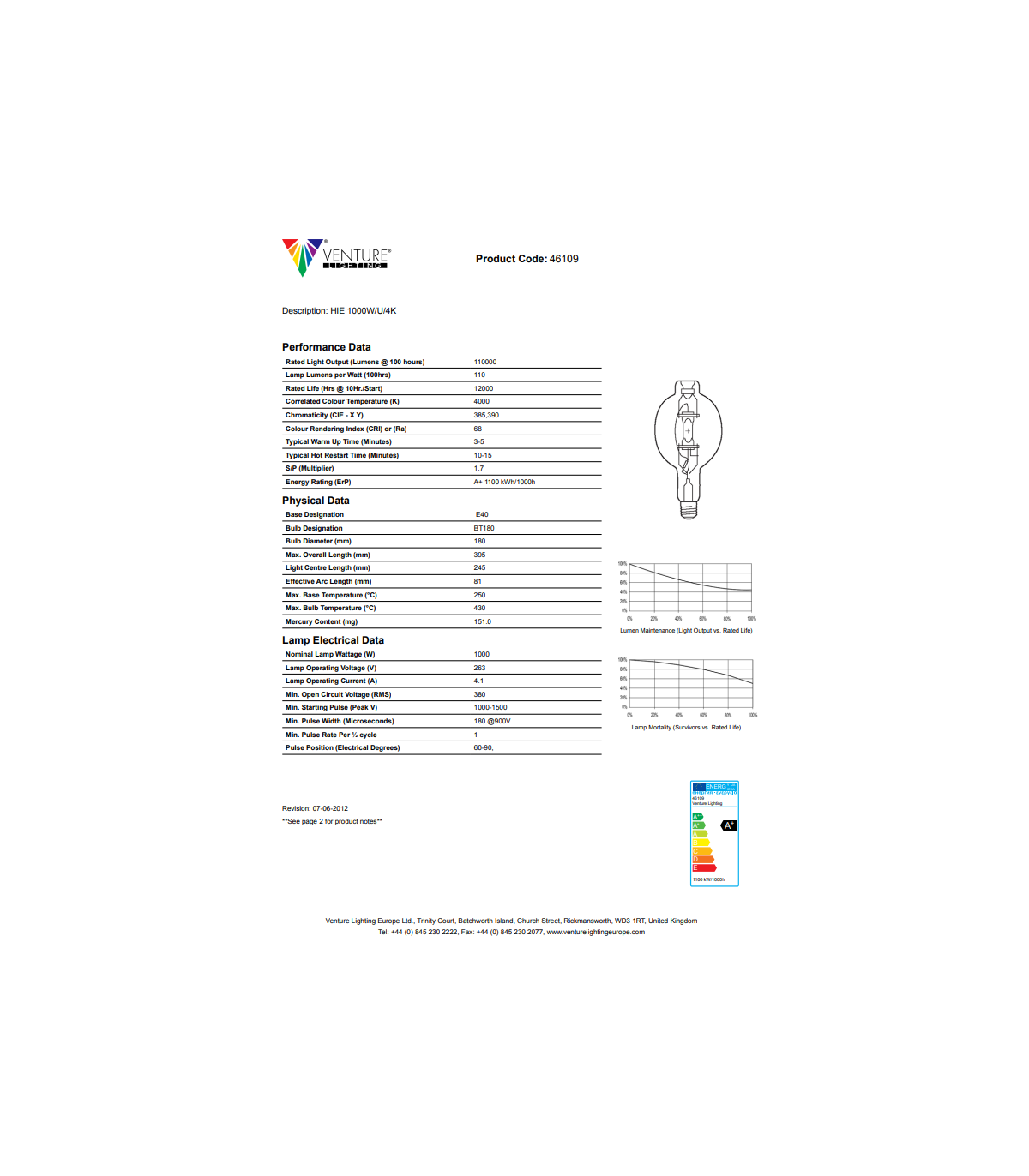

VENTURE HIE 1000W/U/4K (46109)

HIE 1000W/U/4K

Data Rated Light Output (Lumens @ 100 hours) 110000

Lamp Lumens per Watt (100hrs) 110 Rated Life (Hrs @ 10Hr./Start) 12000

Correlated Colour Temperature (K) 4000 Chromaticity (CIE - X Y) 385,390

Colour Rendering Index (CRI) or (Ra) 68

Typical Warm Up Time (Minutes) 3-5 Typical Hot Restart Time (Minutes) 10-15 S/P (Multiplier) 1.7

Energy Rating (ErP) A+ 1100 kWh/1000h Physical Data Base Designation E40 Bulb Designation BT180 Bulb Diameter (mm) 180 Max. Overall Length (mm) 395 Light Centre Length (mm) 245 Effective Arc Length (mm) 81 Max. Base Temperature (°C) 250 Max. Bulb Temperature (°C) 430 Mercury Content (mg) 151.0 Lamp Electrical Data Nominal Lamp Wattage (W) 1000 Lamp Operating Voltage (V) 263 Lamp Operating Current (A) 4.1 Min. Open Circuit Voltage (RMS) 380 Min. Starting Pulse (Peak V) 1000-1500 Min. Pulse Width (Microseconds) 180 @900V Min. Pulse Rate Per ½ cycle 1 Pulse Position (Electrical Degrees) 60-90, ENERG Y IJA IE IA A++ A+ A B C D E A+ 1100 kW/1000h Venture Lighting 46109 Lumen Maintenance (Light Output vs. Rated Life) L
